DIN 7981 B(BZ) - Cross Recessed Pan Head Tapping Screws :

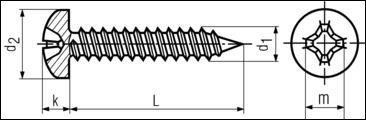

DIN 7981 B(BZ) - Cross Recessed Pan Head Tapping Screws

*All measurements in millimeters (mm)*

d1
k max
d2 max
m approx.
Cross recess No.
2.2
1.8
4.2
2.6
H1
2.9
2.2
5.6
3
H1
3.5
2.6
6.9
4.2
H2
3.9
2.8
7.5
4.4
H2
4.2
3.05
8.2
4.6
H2
4.8
3.55
9.5
5
H2
5.5
3.95
10.8
6.5
H3
6.3
4.55
12.5
7.1
H3
8
5.25
15.8
-
-


7001-8000
