DIN 6926 - Self-Locking Hex Flange Nuts: Non Metallic Insert :

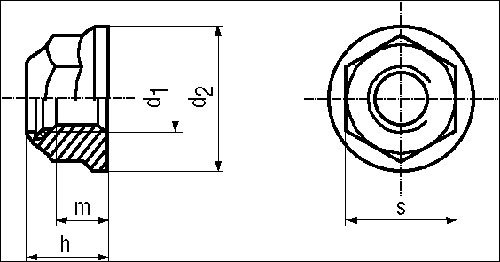

DIN 6926 - Self-Locking Hex Flange Nuts: Non Metallic Insert

*All measurements in millimeters (mm)*

d
d2max.
h max.
m
s max
M5
11.8
7.1
4.7
8
M6
14.2
9.1
5.7
10
M8
17.9
11.1
7.6
13
M10
21.8
13.5
9.6
15
M12
26
16.1
11.6
18
M14
29.9
18.2
13.3
21
M16
34.5
20.3
15.3
24
